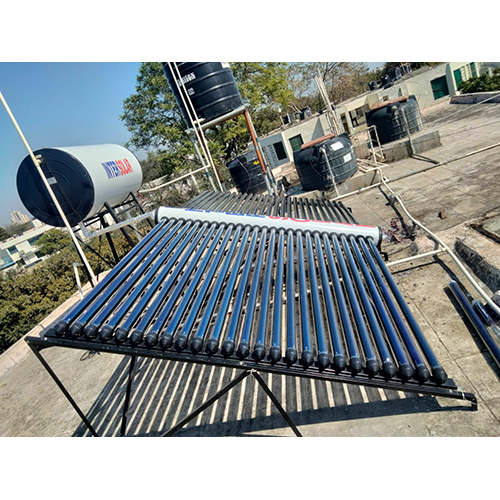

ETC Type Solar Water Heater

The ETC Type Solar Water Heater is an efficient and eco-friendly solution for heating water. Made of high-quality stainless steel, this solar water heater is durable and long-lasting. It has multiple cells that can generate enough power to heat water even in cloudy weather. The automatic switch mode feature ensures that the heater turns on and off automatically as the water temperature changes. With a maximum voltage of 220V, this solar water heater is compatible with most households. The ETC Type Solar Water Heater comes with a warranty, ensuring that you can enjoy hot water for years to come without any worries.

Collector Specifications

• Dimension Of Collector: 1860 L X 1240 W X100 H MM.
• Collector Area: 2.500 Sq.Mt.
• Number of Fins/Collectors: 10Nos.
• Absorber Material: Electro grade copper with 99.9%
• Absorber Coating: Selective black chrome electroplated, to withstand 50 degree centigrade.
• Raiser: 12.5 mm +/- 0.56 mm Copper tube.
• Header: 25.4 mm +/- 0.7 mm Copper tube
• Bonding - Header & Raiser: Copper brazing.
• Bonding - Fin & Raiser Tube: Laser / Ultrasonic Welding.
• Back Insulation: Rock wool/ Mineral wool/ Fibre Glass wool with 48Kg/cu.mt density.
• Side Insulation: Rock wool with 25 mm thick, 38 kg/cu.mt density.
• Collector Box: Aluminium extruded channel with Powder Coating/Anodising.
• Collector Bottom Sheet: Aluminium sheet, 0.56 +/-0.08 mm thick
• Collector Stand: M.S Structure with ename/epoxy coating
• Glazing: Toughened glass, 4 mm thick with low iron, Transitivity upto 92% at near normal incidence.
• Retainer angle for Glass: Extruded aluminium angle with Polyester Powder coating.
• Beading for Glass: EPDM rubber.
• Absorber Area: 2.1 Sq. Mt +/-0.1 Sq.Mt/Collector.
